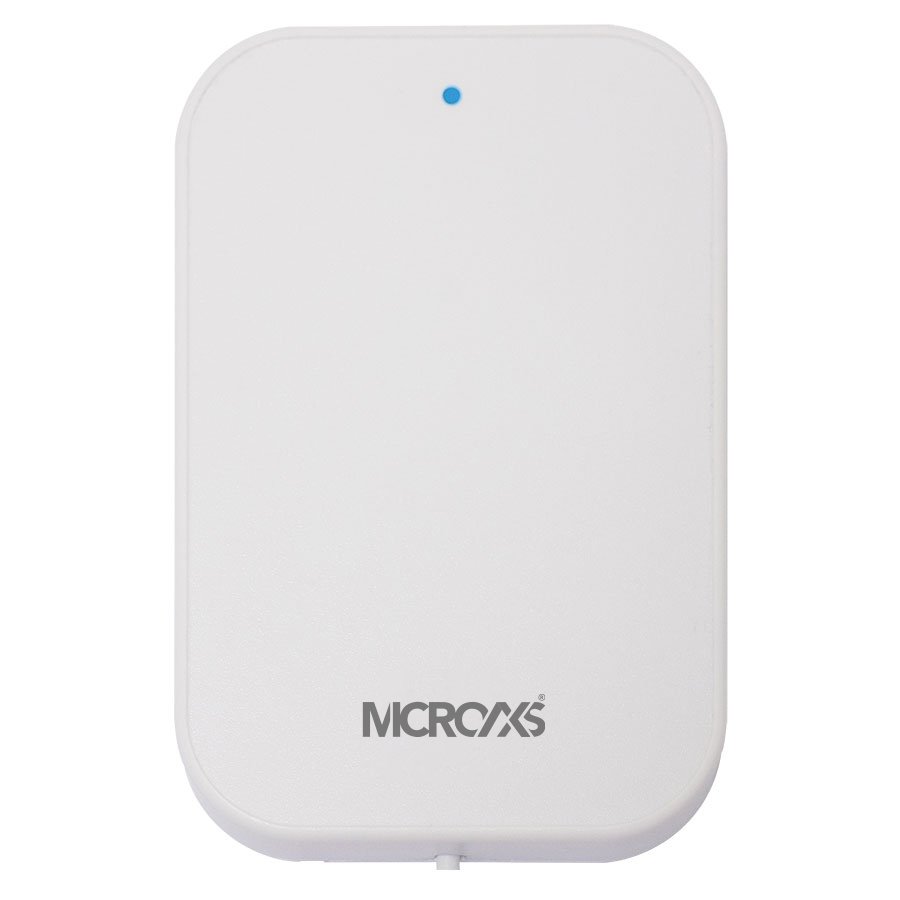

Gateway-online-microaxs

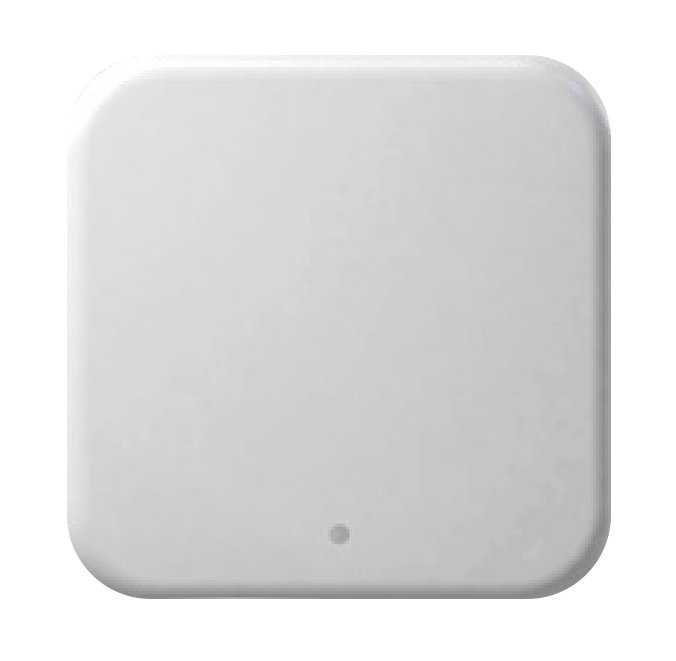

MX-SOG

Features


  • 1. A remote control solution of bluetooth intelligent lock.
  • 2.Adopt bluetooth 4.2 protocol,open transmission distance 8m.
  • 3.After the gateway is connected with the lock, the APP can remotely modify the unlocking password and opening time.
  • 4.Support real-time viewing of unlocking records.
  • 5.Create temporary passcode.
  • 6.Max support and manage 6 pcs smart locks in your house.
  • 7.Power supply: DC 5V/500 mA
Datasheet

Online electronic locks and access controls

Online Connectivity

Remote maintenance and management of electronic locks and Bluetoothaccess controls. Control from the Reception PC and via Smartphone

Online functions

  • Online Audit Trail
  • Remote opening from Reception or via administrator smartphone
  • Battery level control
  • Access credential management
  • Date / Time Update
  • Opening alerts

Features

  • Bluetooth range: up to 10m
  • Network: 2.4G Wi-Fi
  • EEE standard: 802.11 b/g/n
  • Connection: USB Type C
  • Power: 5V/500mA DC
  • Dimensions: 70 x 104 x 18 mm

Operation

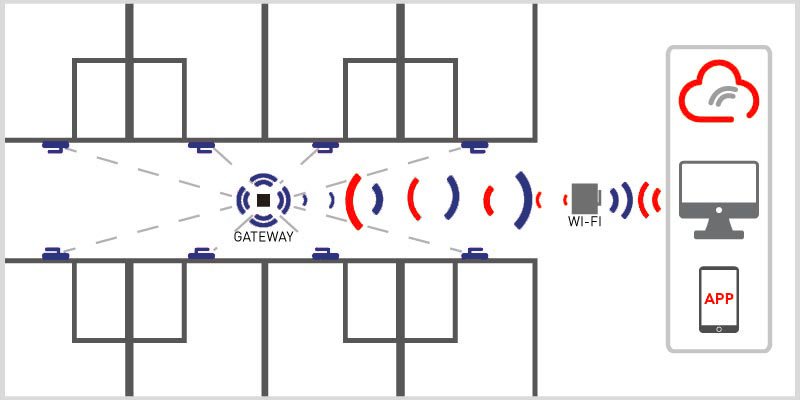

The online MicroaXs system operates by double connectivity: Bluetooth and Wi-Fi.

Devices Administrator

Electronic locks and access controls send the information via Bluetooth to the Gateway. The Gateway, connected to a hotel Wi-Fi network, sends all the information received to the server to make it available for the administrator.

Administrator Devices

The online functions the administrator executes remotely from their PC or Smartphone are transmitted from the server to the Gateway via Wi-Fi, and channelled via Bluetooth to the locks and access controls. When the administrator Smartphone and the lock or access control to be managed are within the Bluetooth range, they communicate directly via Bluetooth and transmit the information without using the Gateway or Wi-Fi.

To implement an online system, a Wi-Fi network, locks and/or access controls with Bluetooth connectivity from Microaxs are essential.

gateway-online-microaxs

Compatibility

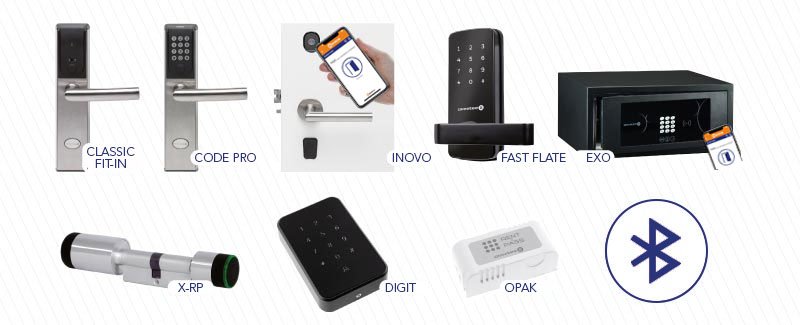

The Gateway is compatible with all MicroaXs Bluetooth locks, access controls and safes.

Compatibility
