CD100
MX KNX - SENSOR

General Specifications

• MX-CD100 KNX Presence Detector is ideal for corridors and parking buildings. Detector is available in two models; Flush Mounted and Surface Mounted.
• Constant light function can be applied in dependence of presence information thanks to integrated brightness sensor and movement sensor. It regulates the ambient brightness to a defined brightness value.
• Lighting can be set to different brightness levels with corridor function based on occasions such as “motion detection, after movement, no action”. Stay-on time can be changed the by end user.
• Air-conditioning and ventilation systems can be controlled by independent HVAC channel.
• The sensor has corridor function feature. Through to this feature presence, absance, stay on time and switch off delay values can be adjustable via KNX. (Corridor function graph)
• Presence information can be sent to presence monitoring applications by independent presence channel.
• The MICROAXS KNX MX-CD100 can either used as a standalone device or master-slave device (parallel operation with other sensors) according to necessity of project.
• MX-CD100 enables fully-automatic and semi-automatic lighting control.
• Test and calibration mode allows for easy installation.
• The device does not require an additional power supply.

HD100
MX KNX - SENSOR

General Specifications

• MX-HD100 KNX Highbay Motion Detector is ideal for warehouses, industrial areas, conference rooms and sport halls
• Constant light function can be applied in dependence of presence information thanks to integrated brightness sensor and movement sensor. MX-HD100 regulates the ambient brightness to a defined brightness value.
• Lighting can be set to different brightness levels with corridor functionbased on occasions such as "motion detection, after movement, no action". Stay-on time can be changed the by end user.
• Air-conditioning and ventilation systems can be controlled by independent HVAC channel.
• Presence information can be sent to presence monitoring applications by independent presence channel.
• The MICROAXS KNX MX-HD100 can be used as a standalone device or master-slave device (parallel operation with other sensors) according to necessity of project.
• MX-HD100 enables fully-automatic and semi-automatic lighting control.
• Test and calibration mode allow for easy installation.
• The device does not require an additional power supply.

PD100/MD100
MX KNX - SENSOR

General Specifications

• Flush or surface mount options
• 6m in diameter movement detection at 2.5 m assembly height
• Integrated light level sensor and movement sensor to achieve constant light function
• Possibility to control air conditioning and ventilation through HVAC
• Adjustable brightness level and duration for “Movement”, “After Movement”, and “No Movement” functions
• Two constant light level adjustments for two states: Vacant & Occupied
• Ability to send movement status periodically with a separate communication object
• Feature to operate as a single sensor when connected with other KNX presence sensors
• Test and calibration modes for convenience during installation
• Does not require an external power supply

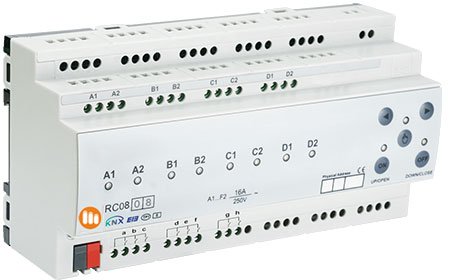

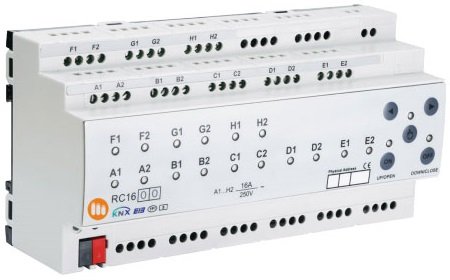

RCU SERIES
ROOM CONTROL UNITS

General Specifications

Does not require an external power supply

Room Control Unit offers following functions:

• Light switch
• AC/DC blind control
• Fan control
• Fan Coil Control (2 & 3 point valve)
• Dry contact inputs

Switching resistive, capacitive and inductive loads in accordance with EN 60669 with following functions:

• Staircase
• External logic
• Priority
• Threshold
• Operating hour
• Sweep

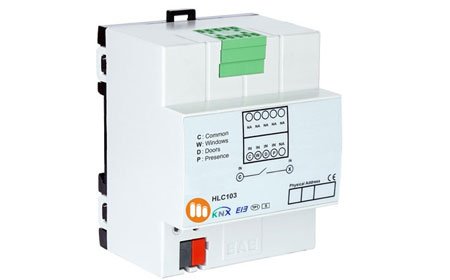

HLC103
MX KNX – HOTEL LOGIC CONTROLLER

General Specifications

• When the guest is not in the room, it guarantees energy saving without using the cardholder (energy saver)
• 4 separate scenarios are operated. HLC pre-welcome, welcome, leave and check-out
• The hotel room has logic functions designed specifically for business needs
• Scenarios defined in the room can be changed from the center with GRMS software
• It can respond to any configuration in the room through to, motion/presence sensor and glass / balcony switch input
• It has 3 dry contact inputs on it
• Does not require an external power supply

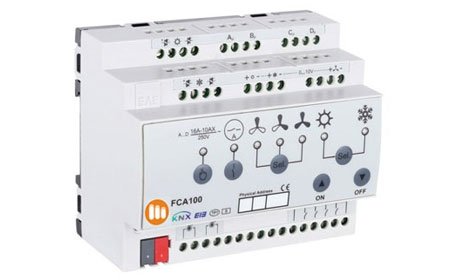

MX-FC1001
FANCOIL ACTUATOR

General Specifications

Fan Coil Actuator FCA100 covers HVAC systems of the electrical installation of room applications and offers following functions in one product.

• Controlling fan coils (2 & 3-point valve)
• Additional Heat or Cooling
• Switching auxiliary load
• Dry contact inputs
• Temperature inputs

FCA100 has 11 outputs, 6 inputs inside. These outputs and inputs are using for:

• Auxiliary Output x1 (Relay 16A)
• Fan Speed Output x3 (Relay 16A)
• Fan Speed Output x1 (0-10 V Signal)
• Valve Control Output x4 (Triac 0.5A)
• Valve Control Output x2 (0-10 V Signal)
• Dry Contact Input x4
• NTC Sensor Input x2

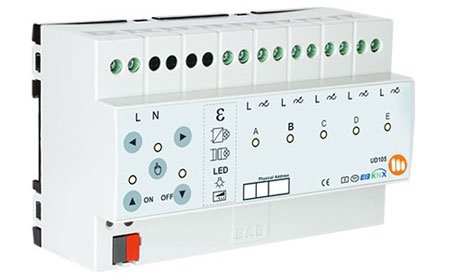

MX-UD005
UNIVERSAL DIMMER

General Specifications

Incandescent lamp, halogen lamp, dimmable LED and fluorescent lamps can be dimmed up to 1500W in 5 parallel channels.

Flexibility to connect loads even below 1W (LED bulbs) without any lower limit

5 independent channels that can be parameterized via ETS4/ETS5.

Manual operation feature for each channel using membrane switches.

Each channel can actualize any of these functions separately.

• Staircase
• Scene
• Operating Hour
• Forced Operation

Configurable behaviour after voltage return, voltage failure or ETS download.

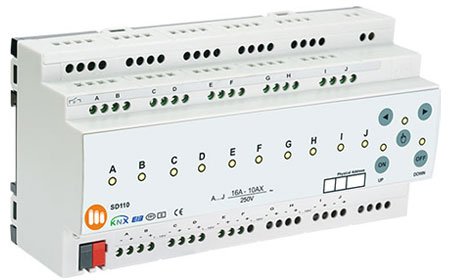

MX-SD110
0-10V / 1-10V DIM ACTUATOR

General Specifications

10 independent channels that can be parameterized via ETS4/ETS5

Manual operation feature for each channel using membrane switches

Each channel can actualize any of these functions separately

Following function list provided;

• Staircase
• Scene
• Operating Hour
• Forced Operation

Configurable behaviour after voltage return, voltage failure or ETS download

Integrated relay on each channel for complete switch off

Does not require an additional power supply

MX-DA100
DALI GATEWAY

General Specifications

• MX-DA100 KNX-DALI Gateway operates as an interface device between KNX bus and DALI bus (According to DALI Standard-IEC 62386). DALI line power supply is integrated in the device.
• Maximum 64 DALI devices (e.g. electronic ballast, transformer, LED driver, ECK, sensor) can be connected to DALI output.
• Addressing and grouping of DALI devices is made via DALI commissioning tool PC software.
• MX-DA100 enables to control 16 DALI groups and can store 64 different lighting scenes.
• Each group can be configured to operate with constant light level, corridor and sequence functions
• MX-DA100 can manage DALI ECK (emergency conversion kit) devices by means of downloading configured auto-matic test schedules, triggering tests and monitoring test results as well as other ECK fault conditions.
• MX-DA100 utilizes DALI sensors* for internal corridor and constant light level control on DALI groups. It is also possible to transmit current presence statuses and measured brightness values of DALI sensors on KNX bus. Maximum 8 DALI sensors can be utilized on DALI bus.
• Fault statuses of DALI devices can be monitored by both device based or group based via different communica-tion objects on the KNX.
• Creating of overlapping DALI groups is possible

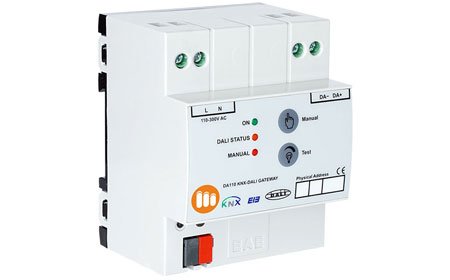

MX-DA110
DALI GATEWAY

General Specifications

• MX-DA110 KNX-DALI Gateway operates as an interface device between KNX bus and DALI bus (According to DALI Standard-IEC 62386). DALI line power supply is integrated in the device.
• Maximum 64 DALI devices (e.g. electronic ballast, transformer, LED driver) can be connected to DALI output.
• MX-DA110 enables to control 64 DALI devices individually and can store 16 different lighting scenes
• Addressing and test operations of DALI devices is made via Windows based PC software. (Microaxs DALI Tool)
• DALI devices fault information can be monitored by device based via different communication objects on the KNX.
• MX-DA110 has internal DALI power supply which is enough to energize up to 64 DALI devices

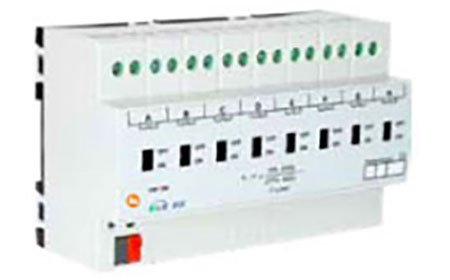

MX-SW104-108
RELAY MODULE

General Specifications

8 independently configurable channels

Manual control for each relay on the device using slide switches

Does not require an external power supply

Electric current control can be configured

Following functions can be defined separately for each channel:

• Stair function
• External logic
• Internal logic
• Priority function
• Threshold function
• Transaction time
• Sweep function

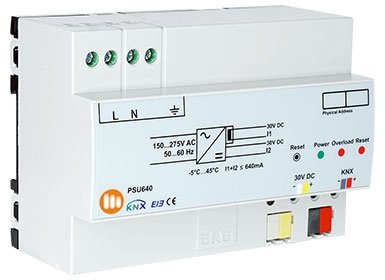

MX-PSU320-640
POWER SUPPLY

General Specifications

Input voltage range 150-275V AC, 50 60Hz

Output 1: KNX bus power with an integrated choke. (30VDC, SELV)

Output 2: Additional voltage output. (30VDC, SELV)

Short-circuit and overload protected outputs

LED indicators for Power, Overload and Reset status

On device reset with Reset Button

MX-MI1616
MULTI INPUT OUTPUT

General Specifications

Does not require an external power supply

16 binary input channels with following functions:

• Switch / push button input
• Dimmer control
• Control of shutter/blinds
• Value - Scene control
• Counter for count pulse

MX-IPR100
IP ROUTER

General Specifications

MICROAXS IP router is a tunneling and routing device. IPR100 is used as a gateway between IP and KNX bus line for commissioning and monitoring purposes. (It is also possible to simultaneously create 4 KNXnet/IP connections).

Simultaneous connection to two different KNX systems and transmission of telegrams between the local network and different buses

IP address assignment manually or by DHCP server

Option to block or allow telegrams between KNX and IP regarding configured filter table

Deactivation of filter table using on-device buttons for quick diagnosis

Functional status information with 6 LEDs on device

MX-LC100
LINE COUPLER

General Specifications

LC100 is able to filter the traffic according to the installation place in the bus system hierarchy or according to the built in filter tables for group oriented communication

Galvanically isolated KNX bus lines

Bus status (traffic, errors, filter) on each line are accurately shown by six bicolor LEDs

LC100 supports long telegrams and features an configurable "Manual Function" that can be activated by a single button press

Configurable one-button activation for special functions, e.g. transmit all group telegrams (useful during commissioning, automatic reset after a dedicated time, max. 8h)

LC100 can be configured as line repeater for extending KNX lines above standard limits

MX-UINT008
UNIVERSAL INTERFACE

General Specifications

Colored connection cables

Flush mounted into switch boxes

Does not require an external power supply

8 input channels with each featuring following functions:

• Switching
• Dimming
• Curtain control
• Value and priority
• Scene control
• Pulse counter

MX-BS100
Microaxs Brightness Sensor

Features

• Brightness measurement: The current light intensity is measured by a sensor
• 3 Threshold values for twilight (up to 1000 lux), 3 for daylight (1-99 klux), can be adjusted per parameter or via communication objects
• 8 AND and 8 OR logic gates with each 4 inputs. Every switching incident as well as 8 logic inputs (in the form of communication objects) may be used as inputs for the logic gates. The output of each gate may optionally be configured as 1 bit or 2 x 8 bits

MX-TS100
Microaxs Time Switch

Features

• Digital time switch with yearly and astronomical time program
• Time synchronisation via connection of external DCF or GPS antennas, additional positioning for astronomical program with GPS
• Duo Fix spring terminals for 2 conductors each
• Text-oriented user guidance in display
• 800 memory locations
• Interface for OBELISK top 2 memory card (PC programming)
• Pulse program, Cycle program
• Extensive yearly clock functions
• Astronomical switching function (automatic calculation of sunrise and sunset times for the whole year)
• Switching preselection
• Permanent switching ON/OFF
• Count-down timer
• Integrated hour counter
• Display backlight (can be turned off)
• PIN coding
• Automatic summer/winter time changeover
• Time and date synchronisation of other bus participants

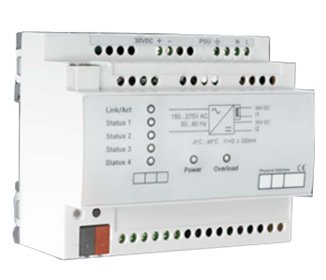

MX-HRS100
Modbus TCP Router

Features

• The MX-HRS100 is designed for supervising and managing KNX setups through SCADA visualization software
• The device's IP address can be assigned either by a DHCP server or manually configured.
• The MICROAXS MX-HRS100 features an innovative logic controller that facilitates a room energy-saving system without requiring a card holder
• The device is equipped with three physical inputs designated for door, window, and presence detection.
• The MX-HRS100 incorporates an integrated KNX bus power supply of either 320mA or 640mA for KNX devices.
• The output of the KNX power supply is safeguarded against short-circuits and overloads.
• The device employs three distinct LED indicators to display power status, overload conditions, and resets
• To initiate a restart of the power supply, users can press the reset button located on the device

MX-VS100
Room Control Unit

Features

• 5 Vdc power supply by means of a special plug-in terminal supplied. Power supply not included.
• KNX bus (twisted pair) via red-black terminal provided
• 1 Ethernet port via cat. 5 or higher cable and standard RJ45 connector
• 2 RS485 ports for integration of Modbus RTU slave devices
• 1 USB 2.0 Type A port
• 9 frontal LEDs: POWER LED to signal the presence of power supply; SERVICE led to signal reception / transmission operations in progress for KNX bus, RS485 bus, Z-Wave
