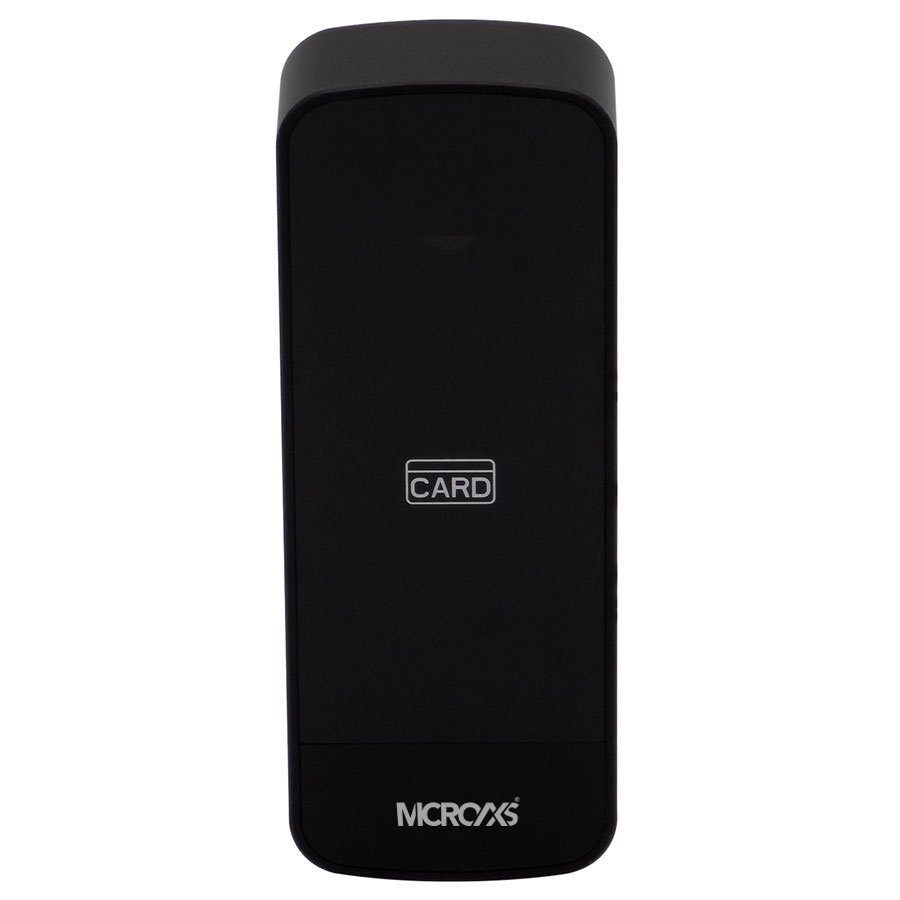

Wall reader access control, with Mifare proximity opening

With a sophisticated and discreet design, the MINI access control is the ideal solution for those common areas of the hotel, special or restricted, where the installation of an electronic lock is not possible.

The MINI access control is managed with the Microaxs software and allows total control over all access points.

Access control designed for indoor or outdoor use in hotels and buildings, in access to common areas such as:

  • Lift.
  • Spa / Gym.
  • Restaurant.
  • Conference room.
  • Hotel entrances (reception).

This access control device controls the access of room doors equipped with an electric strike, instead of a traditional electronic hotel lock.

Both the MiFare card reader and the control unit have been integrated into a single device, creating an easily to install unit.

BAnti-humidity rubber gasket included to be used in those zones that need it.


  • 1 output relay.
  • Audit trail of the last 400 events registered.
  • Dimensions: 110 x 42 x 22 mm
  • Power supply: 12V AC/DC (220V 50Hz power cord supplied).
  • Temperature: -10 ºC ~ 70ºC.
  • Humidity: 20% ~ 90% RH
